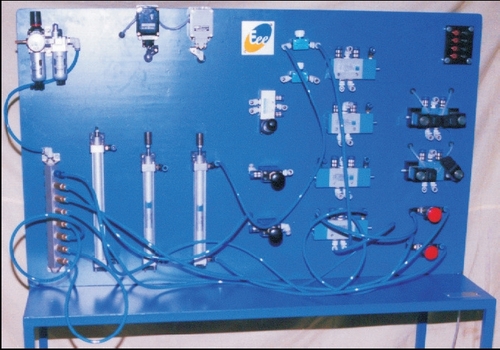

Electro Pneumatic Circuit Trainer

Electro Pneumatic Circuit Trainer
Electro Pneumatic Circuit Trainer
Product Code : CON-07
Brand Name : EEE
Product Description

RANGE OF EXPERIMENTS:



2. Sequence of double acting cylinder.

3. Pneumatic logics.

4. Semi- automatic sequencing of two double acting cylinder.

5. Continuous sequencing of two double acting cylinders with solenoid valves.

6. Continuous sequencing of two double acting cylinders with solenoid valves.

7. Sequencing of two cylinders.

8. Speed control circuits.

9. Quick return / fast approach circuits.

10. Different programs using PLC ( Sequencing circuits and logic circuits)

1. Electrical control of double acting cylinder.
